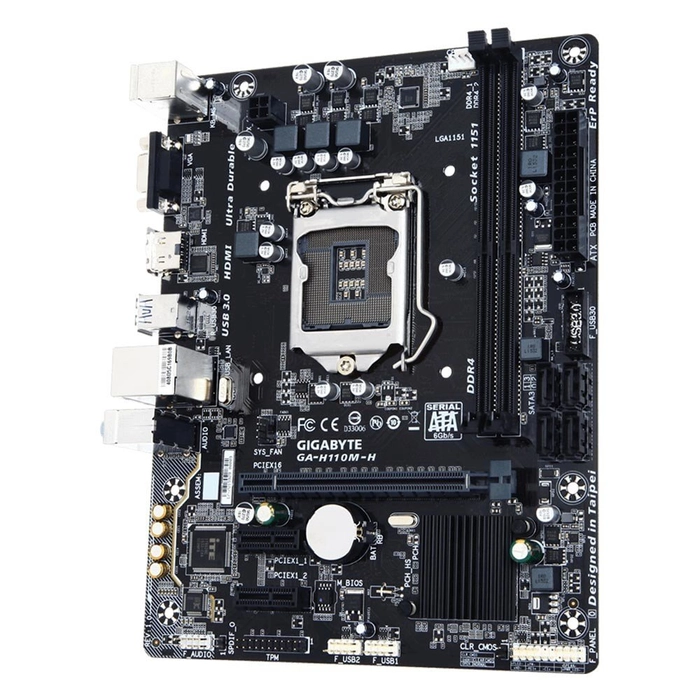

Gigabyte GA-H110M-H DDR3 Intel H110 LGA1151 Micro ATX motherboard

Brand: Gigabyte

Model: GA-H110M-H

RAM: DDR4

CAPACITY: 32 GB DDR4 DDR4 2400/2133 MHz

CPU: GA H110M H Supports 6th / 7th Gen Intel CPU Motherboard

Sales Package: Motherboard/Back Panel/Driver CD & manual

Descroption:

L3 cache varies with CPU (Please refer "CPU Support List" for more
information.) Chipset Intel® H110 Express Chipset Memory -2 x DDR4 DIMM
sockets supporting up to 32 GB of system memory * Due to a Windows
32-bit operating system limitation, when more than 4 GB of physical
memory is installed, the actual memory size displayed will be less than
the size of the physical memory installed. Dual channel memory
architecture Support for DDR4 2400/2133 MHz memory modules Support for
ECC UDIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for
non-ECC UDIMM 1Rx8/2Rx8/1Rx16 memory modules (Please refer "Memory
Support List" for more information.) Onboard Graphics-Integrated

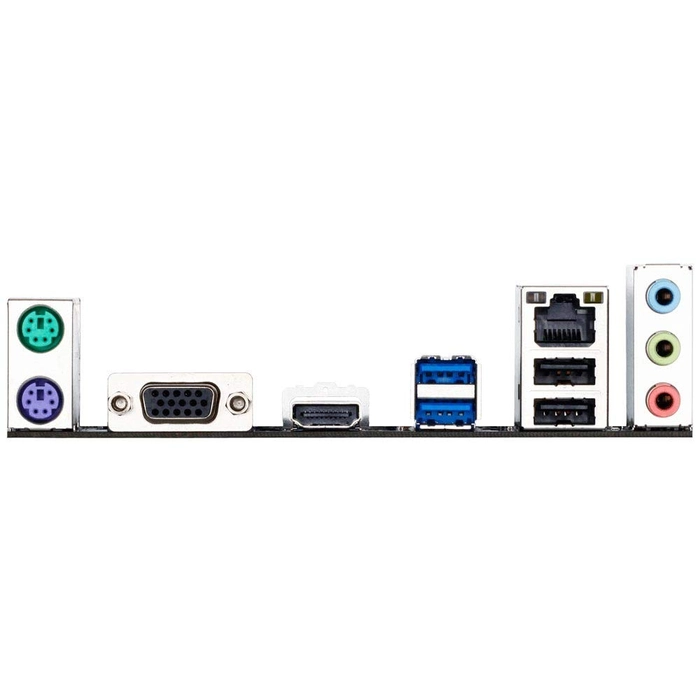

Graphics Processor - Intel® HD Graphics support: 1 x D-Sub port,
supporting a maximum resolution of 1920x1200@60 Hz 1 x HDMI port,
supporting a maximum resolution of 4096x2160@24 Hz * Support for HDMI
1.4 version. Maximum shared memory of 1024 MB Audio Realtek® ALC887
codec High Definition Audio 2/4/5.1/7.1-channel * To configure
7.1-channel audio, you have to use an HD front panel audio module and
enable the multi-channel audio feature through the audio driver. Support
for S/PDIF Out LAN Realtek® GbE LAN chip (10/100/1000 Mbit) Expansion
Slots 1 x PCI Express x16 slot, running at x16 (The PCI Express x16 slot
conform to PCI Express 3.0 standard.) 2 x PCI Express x1 slots (All of
the PCI Express x1 slots conform to PCI Express 2.0 standard.) Operating System Windows® 10 64-bit (for 7th Generation Intel®
Processors) Windows® 10 64-bit / Windows® 8.1 64-bit / Windows® 7 32-bit
/ 64-bits (for 6th Generation Intel® Processors) * Please download the
"Windows USB Installation Tool" from GIGABYTE's website and install it
before installing Windows 7. Form Factor Micro ATX Form Factor; 22.6cm x
17.4cm

Warranty

Warranty Summary: 3 YEARS DOMESTIC WARRANTY

Covered in Warranty: MANUFACTURING DEFECT IN MOTHERBOARD

Not Covered in Warranty: PHYSICAL OR BURNT DAMAGE

Warranty Service Type: CUSTOMER HAS TO BRING IT TO SERVICE CENTRE

**Return & Refund: Not Applicable (Goods Once sold will Not be accepted Back)

per piece
₹5,300
₹5,895
