Features

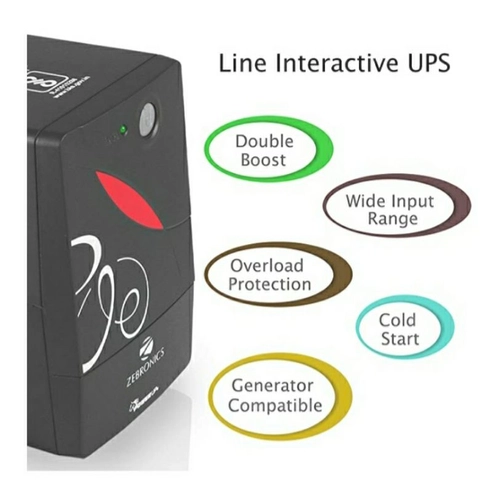

Line interactive UPS
Auto restart while AC is recovering
Double Boost

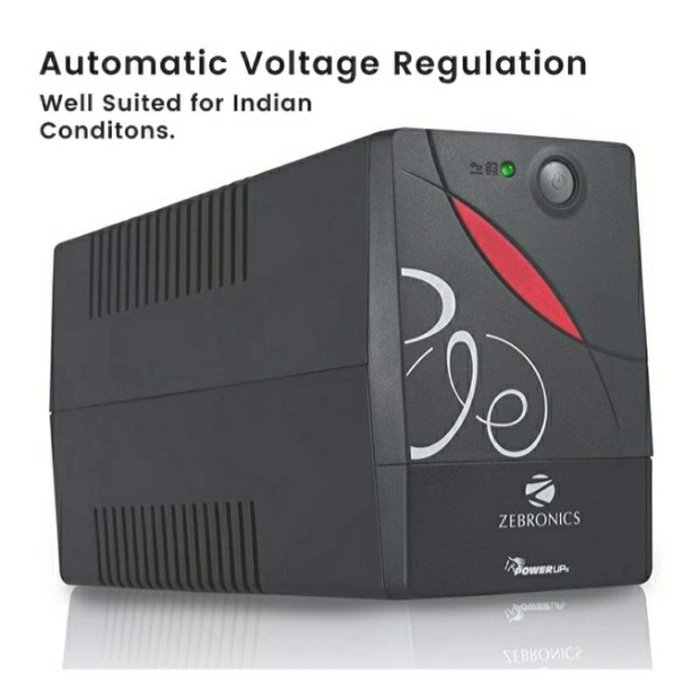

Automatic Voltage Regulation (AVR)
Wide Input Range
Microcontroller Based
Generator Compatible
Specification
Output
Voltage Range (AC mode): 230VAC ± 10 %
Voltage Range (Batt. Mode): 230VAC ± 10 %
Frequency Range (Batt. Mode): 50Hz/60Hz ±1%
Transfer Time: Typical 4-8ms
Waveform: Simulated Sine Wave
Protections: Overload, Short Circuit, Over Discharge & Over Charge
Battery
Battery Type: 12V 7Ah x 1 no
Recharge Time: 4-6 hours to charge 90%

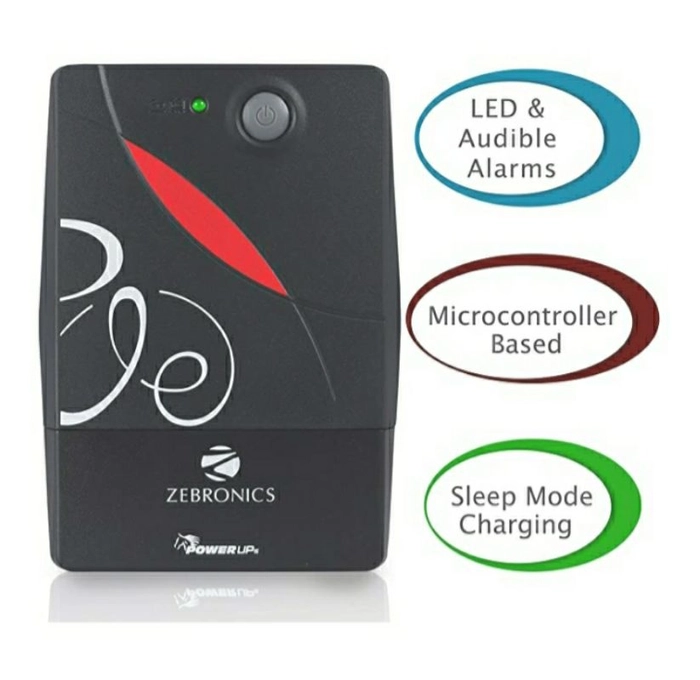

Indicators
AC Mode: Green LED Glows
Battery Mode: Green LED blinks
Battery Mode: Beeping every 10 Seconds
Low Battery: Beeping every Seconds
Overload: Beeping every 0.5 seconds
Fault: Continuous Beeping
