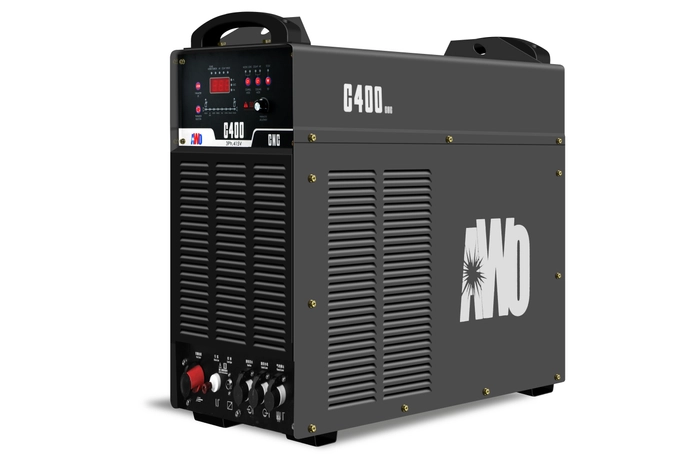

AWO PLASMA CUT 400

Voltage(V)3-415 ±15% 50/60Hz

Rated Input Capacitor(KVA)92

Rated Input Current(A)127

Power Factor  0.91

Rated Output Current(A)400

Rated Output Voltage(V)170

Output no-load Voltage(V)340

Rated Duty Cycle(%)100

Output Current Range(A)40-400

Arc-striking Mode Non-contact Arc Striking

Quality Cutting Thickness(steel-mm)55

Max Cutting Thickness(steel-mm) 95

Plasma Gas Usage Compressed Air

Working Gas Pressure Scope(Mpa) 0.5-0.6

Efficiency 90

Insulation Class F

Torch Cooling Way AIR / WATER

Protection Degree IP21S

Dimension(mm)-big 970*430*890

Net Weight(kg) 140

Gross Weight(kg)153.6

low-carbon steel quality cutting(mm)55

low-carbon steel cut-off ability(mm)95

low-carbon steel max perforation(mm)40

stainless steel cut-off ability(mm)50

stainless steel quality puncture(mm)36

Aluminum cut-off ability(mm)50

Aluminum quality puncture(mm)36
