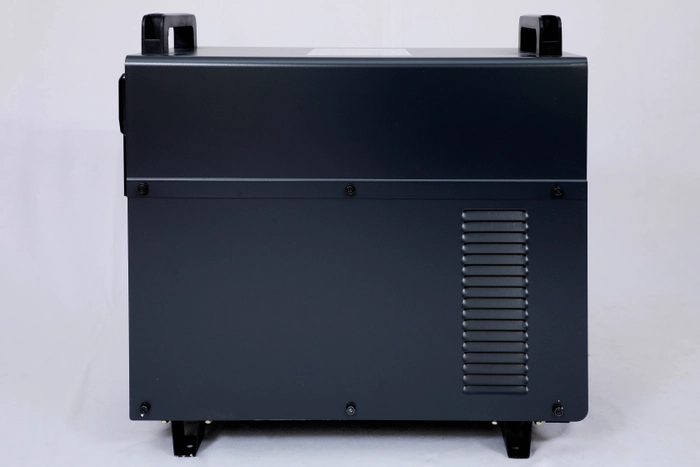

Model NIKO ARC 105

PLASMA CUT PORTABLE

Voltage(V)3-380+-10% 50Hz/60HZ

Rated Input Capacitor(KVA)15.8

Rated Input Current(A)24

Rated Output Current(A)30-105

Output no-load Voltage(V)305

Rated Duty Voltage(V)122

Rated Duty Cycle(%) 60

Working Gas Pressure Scope(Mpa)0.4-0.5

Arc-striking Mode HF Non-contact Arc Striking

Quality Cutting Thickness(steel-mm)0.3-22

Max Cutting Thickness(steel-mm)40

Plasma Gas Usage Compressed Air

Torch Cooling Way AIR

Insulation Class F

Protection Degree IP21S

Dimension(mm)636*290*535

Dimension(mm)-small  590*275*520

Net Weight(kg)32

Gross Weight(kg) 32.3
