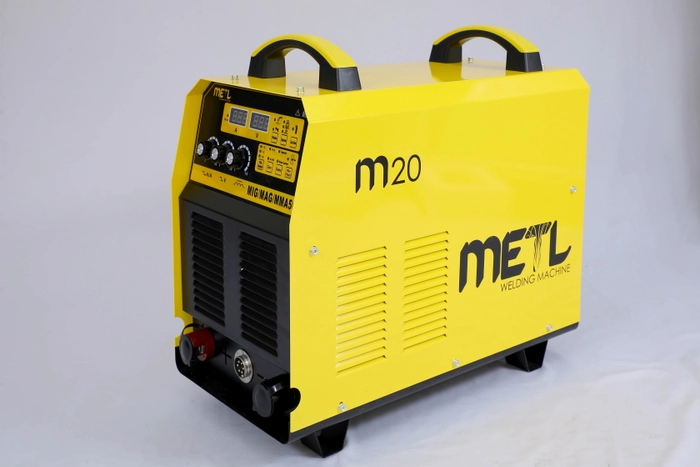

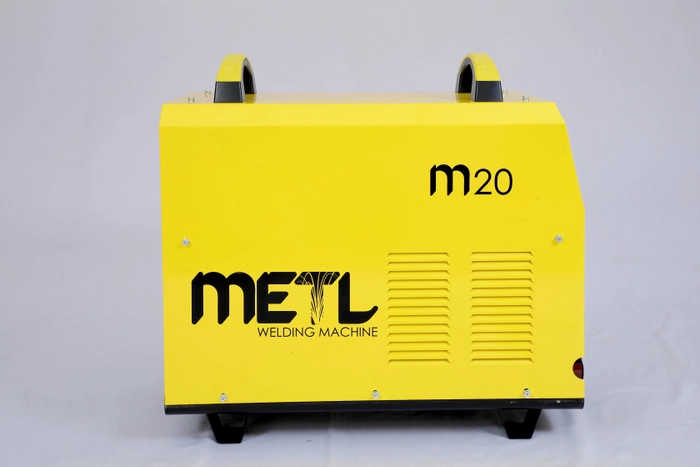

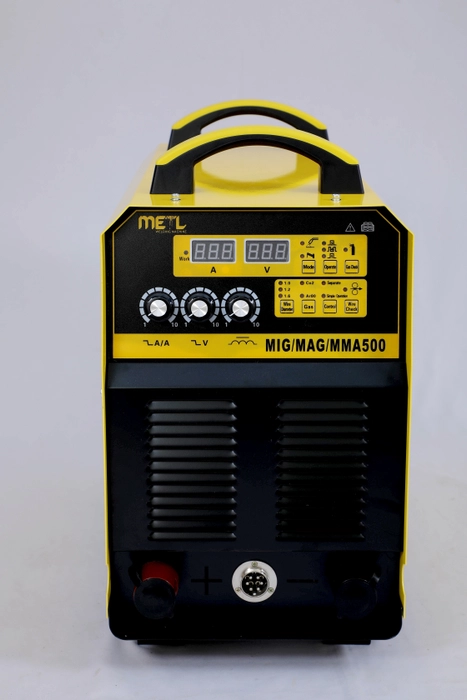

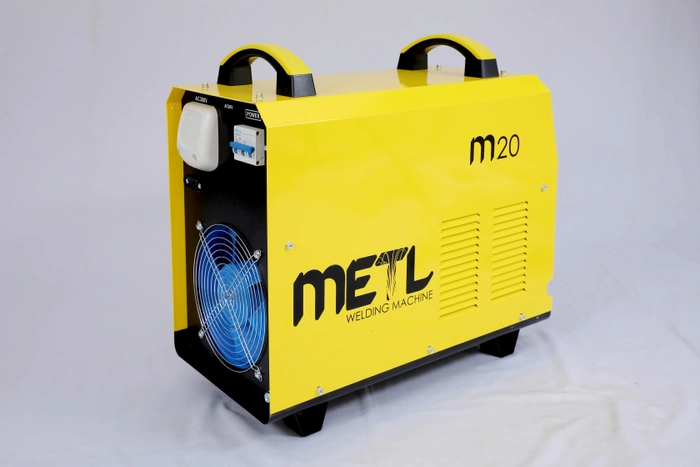

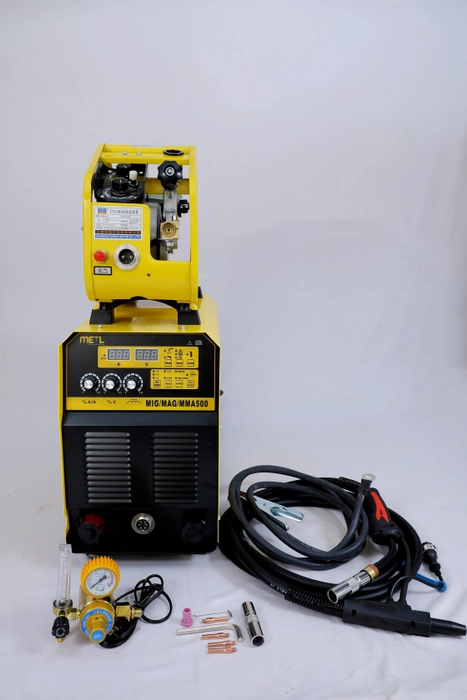

MODEL:- METL M20

MIG/MMA WELDING MACHINE

Voltage(V) 3-380

Frequency(Hz)50/60

Rated Input Capacitor(KVA)24.66

Rated Input Current(A)45

Rated Duty Cycle(%)60

Rated Output Current(A)500

Rated Output Voltage(V)45

Rated no-load Voltage(V)68

Rated Duty Cycle(%)60%

Efficiency(%)85

Power Factor(COS)0.93

Output Current Range(A)30-500

Output Voltage Range(V)14-45

Adjustment of Wire Fedding Speed(m/min)1~24

Arc-ending Current(A)20-500

Arc-ending Voltage(V)20- 40

Wire Diameter(mm)Ø1.0,Ø1.2,Ø1.6

Cooling Way AIR COOLING

Insulation Class F

Protection Degree IP21S

Welding Mode CO2/MAG/MMA

Dimension(mm) 625*370*600

Net Weight(kg) 27.2

Gross Weight(kg)29.1
