SG90 Servo Motors By Mechatrix
Make it BIG

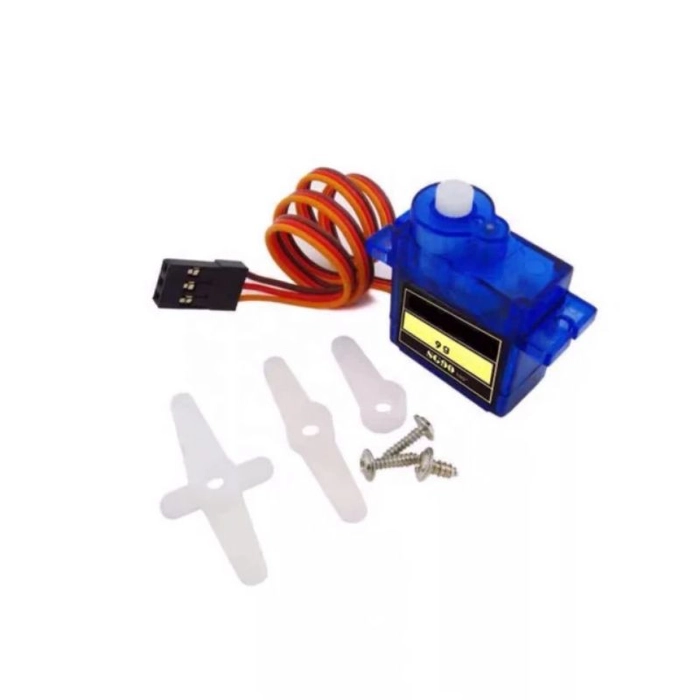

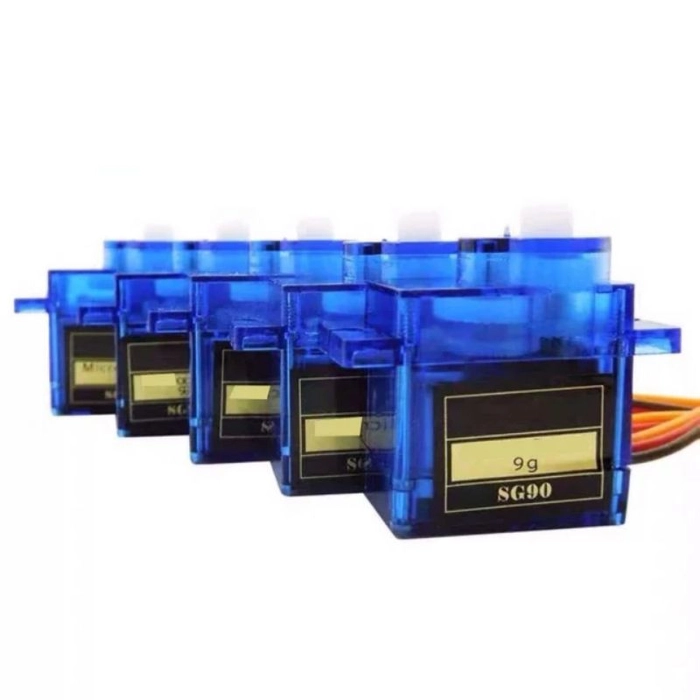

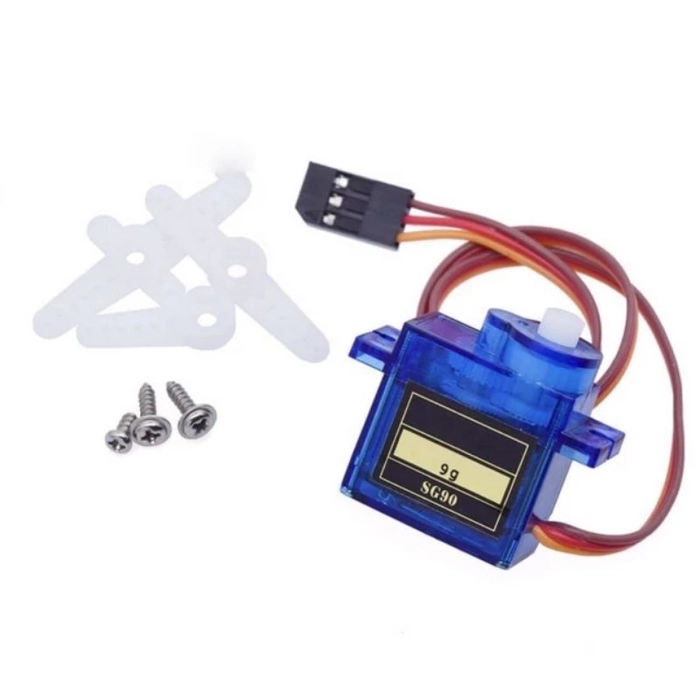

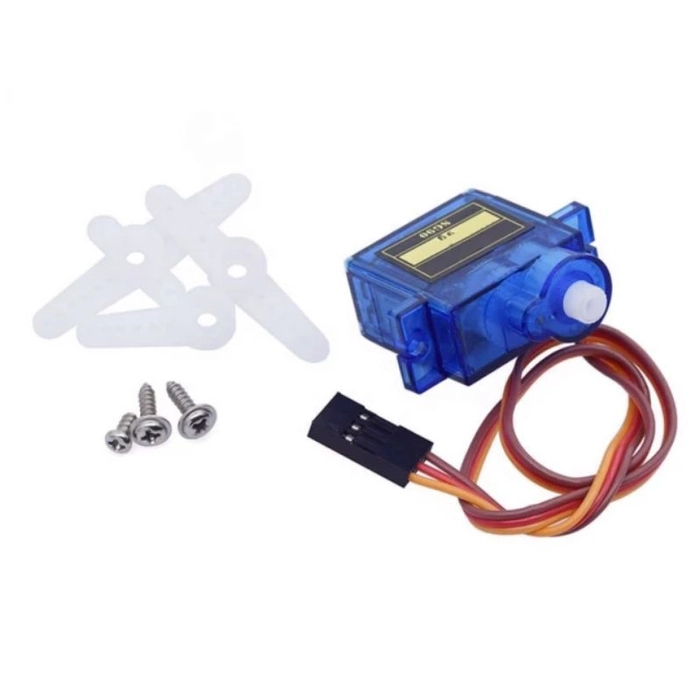

The SG90 Servo Motors comes as a set of Five motor modules that boasts three pairs of blades that can rotate from 0 degrees to 180 degrees. The connector wire measures 150mm in length which is sufficient to install it on a breadboard. Simply plug in the included arm and gear assortment and start experimenting for your next DIY project!
FUNCTIONING OF THIS SG90
SG90 Servo can rotate approximately 180 degrees (90 in each direction) and works just like the standard kinds but smaller. It will fit in small places. It comes with 3 horns (arms) and hardware.
SG-90 SPECIFICATIONS
Operating Voltage is +5V typically
Torque: 2.5kgf / cm & Operating voltage: 4.8 V (~5V)
Operating speed is 0.1s/60°
Gear Type: Plastic
Rotation : 0°-180°
Weight of motor: 9gm
Package includes gear horns & screws
Dimension:22.2 x 11.8 x 31mm approx
