Online Flow Meter (Mobile phone app based monitoring)
Features:
- Analog Sensor
- Accuracy Up-to 5%
- Water Proof Sensor
- Standard 1/8″ Nozzle Size to 2" PVC thread fitting
- Max. Supported Water Flow: 6L/Min - 200 L/Min

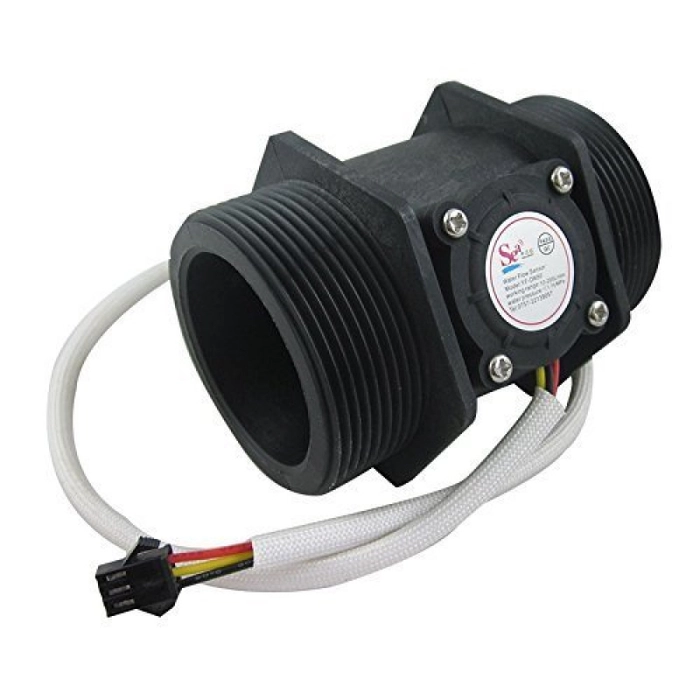

Specifications Of 2 inch WATER FLOW SENSOR :-
- Working voltage range:DC 5-18 V
- Waterproof, Heat resistance, pressure resistance, cold resistance, Easy to install.
- Flow range: 10-200 Liter per min
- Sensor: Hall effect
- Maximum current:15 mA (5 volt DC)
- Operating Temp: up to 80C,Operating humidity:35%-90%RH
- Allow compression: Water pressure 1.75 Mpa below
- Insulation resistance: >100M OHM
- Storage Temperature: -25-80C
- Storage humidity: 25%-95%RH
- Output Waveform: Square Wave,output pulse signal.
- Size: 92mm x 68mm
Per
piece
