Product description

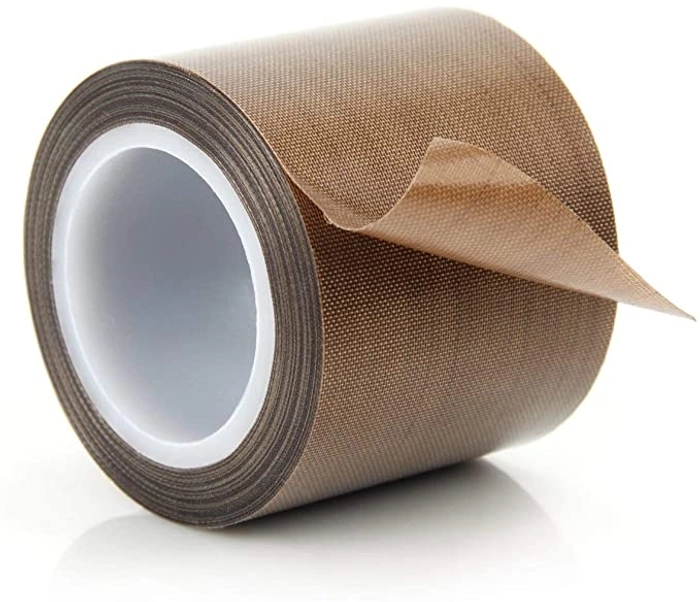

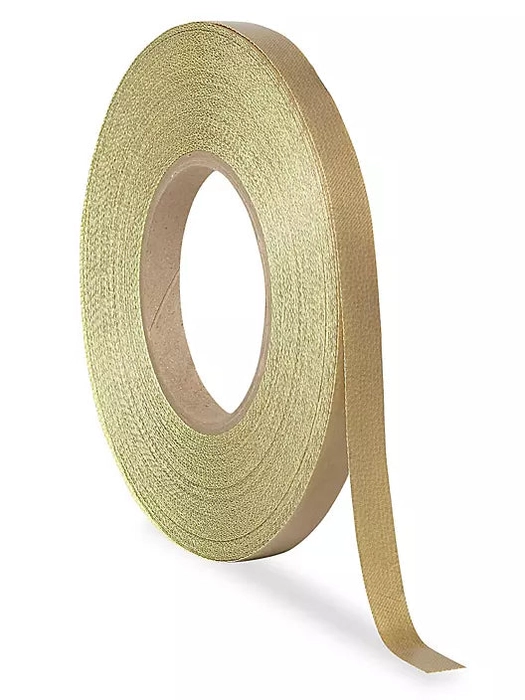

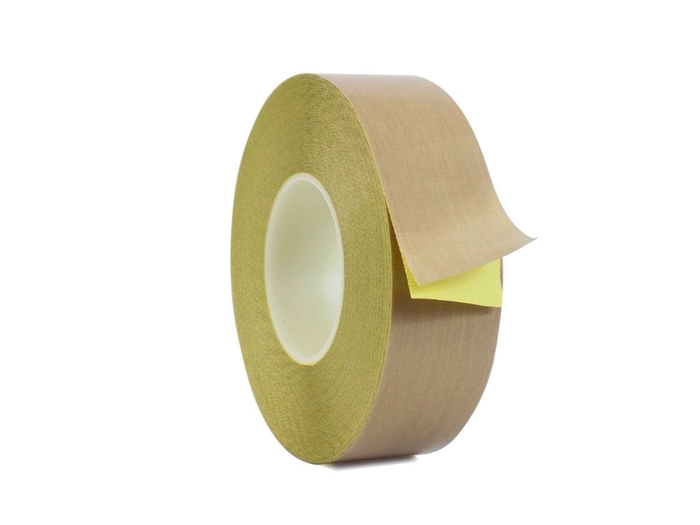

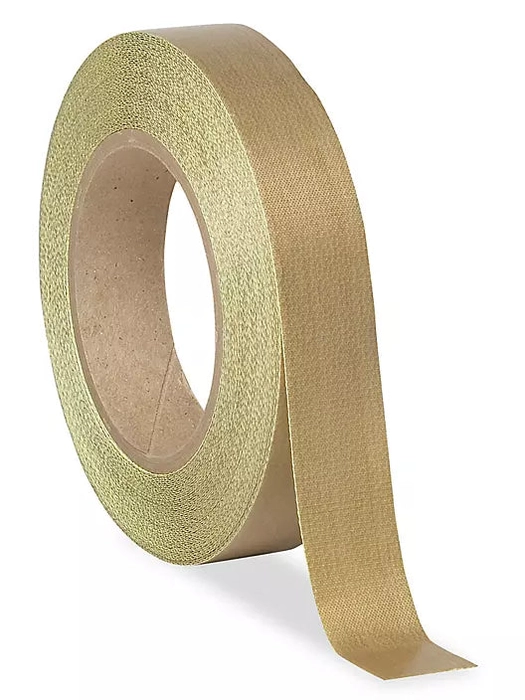

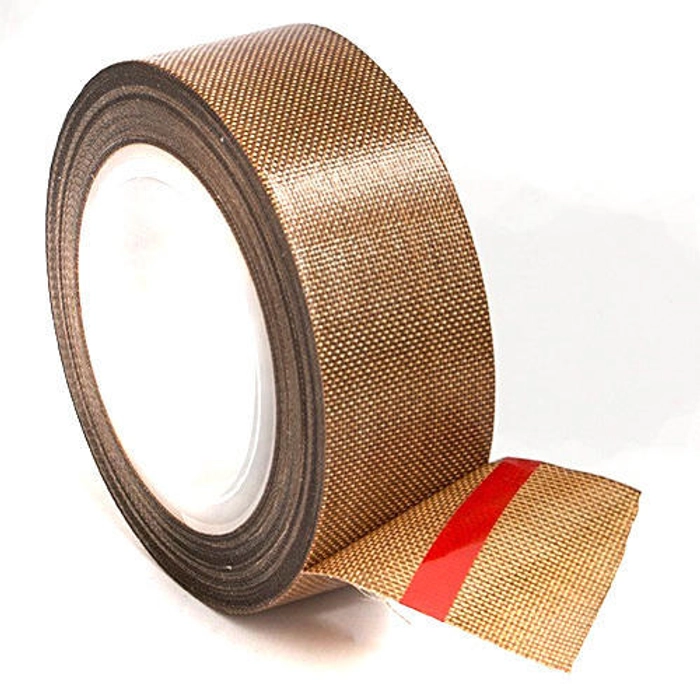

PTFE Coated Glass Fabric Tapes
TFE- Mil thickness (-3, -5, -6, or -10)
Specify with (WL) or without (SW) liner.
Impregnated fiberglass cloth, consisting of warp and fill yarns, coated with a high temperature silicone adhesive. Excellent electrical, mechanical and chemical properties.
Teflon Coated Glass Fabric Tapes re Used as a primary insulation in a variety of electrical equipment and heat sealing bars, chute liners, gaskets, bearing surfaces, tabletop covers, guide rails and roll covers. Low friction surface; abrasion resistant. Product comes standard with liner (“WL”) or available self-wound (“SW”).
1/2” AND 3/4” WIDE ROLLS MUST BE SELF WOUND.
PRODUCT CODE: WOD TFE54WL-00500-72-36-BRO
AVAILABILITY: In Stock, 3 To 5 Business Days To Slit/Cut To Width
MATERIAL: Fiberglass Cloth
ADHESIVE: Silicone
THICKNESS: 8.4 Mil
LENGTH: 36 Yard
ADHESION: 40 Oz/In
TENSILE STRENGTH: 140 Lbs/In
ELONGATION: 3%
CERTIFICATION: N/A
LOW TEMP: -100 F
HIGH TEMP: 500 F
CORE: Standard 3"
ADHESIVE SIDE: Single Sided
DIELECTRIC STRENGTH: 6.5KV
Keyword: ptfe coated glass fabric tape
