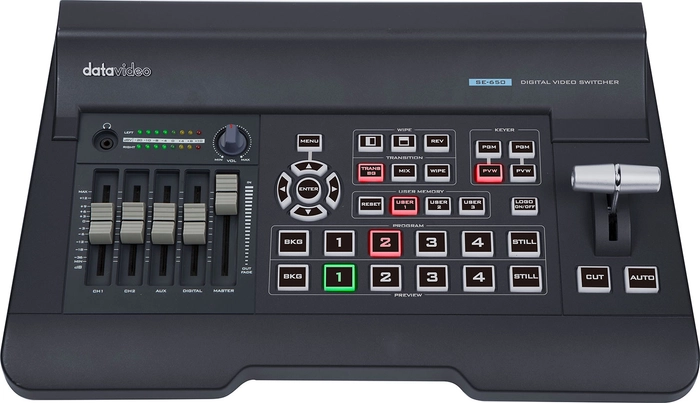

Datavideo SE-650-HD 4-Channel Digital Video Switcher

SE-650 4 Input HD digital video switcherVideo StandardHD
Video Format1080i 50/59.94/60Hz720p 50/59.94/60Hz
Video ProcessingSDI: 4:2:2HDMI: YUV 4:2:2 10 bit, RGB: 4:4:4
Input Routable / CrosspointAll 4, repeatable

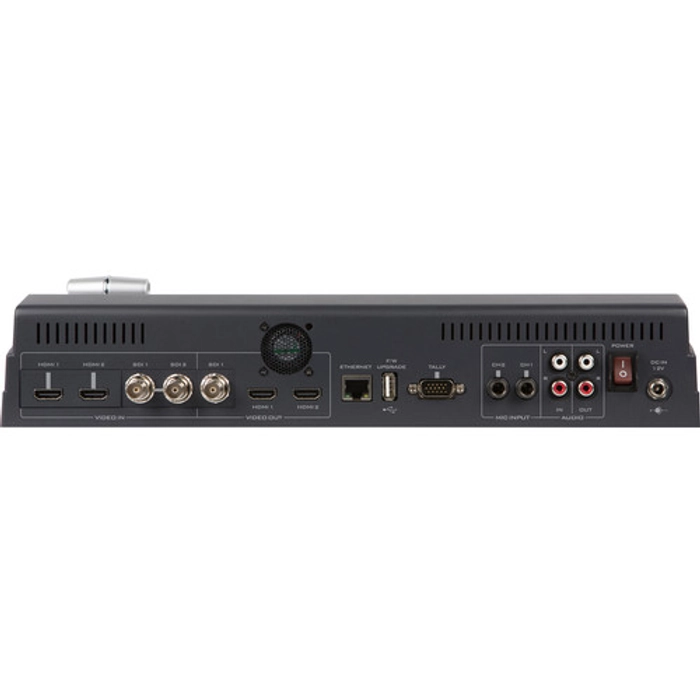

Video Input2x HD-SDI2x HDMI
Computer Graphic Interface2 via HDMI
Video Output2 x HDMI (1 is MV, 1 is Assignable)1 x HD-SDI (Assignable)
Built-in Multi-view Monitoring OutHDMI & SDI assignable
Analogue Audio Input1 x Stereo RCA (L/R)2 x Mono Microphone
Analogue Audio Output1 x Stereo RCA (L/R)1 x Stereo headphone (Mini Jack with volume control)
Digital Embedded Audio SupportInput 2 channels, Output 2 channels
A+V SwitchingYes
Chromakey2
USK2x Keyer support Chromakey/ Linear/ Luma Key
DSK1x DSK support Lumakey/ Linear key (Key / Fill)
Picture in Picture1
Logo Insertion1
Still Store500
EffectsFTB, Cut, 32 Wipe with border
Transition PreviewFull transitions preview
Sync / Reference In/OutBuilt-in Genlock (internal)
Tally Output1x D-sub 15pin, dual color
PC Remote ControlDVIP (Ethernet)

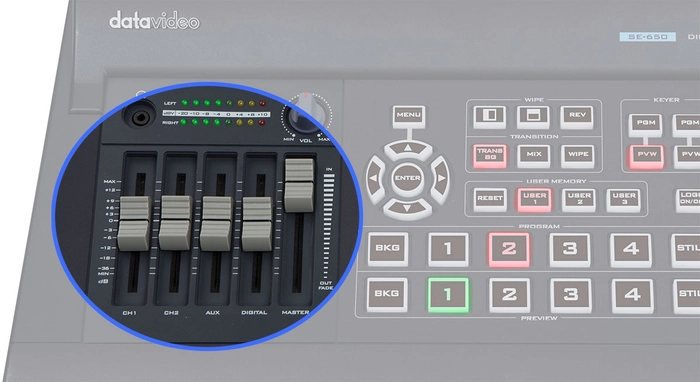

Built-in Audio MixerYes, 4 channels
Special FeaturesFree Virtual Set and Stinger transition included
ChassisUnibody
Dimension (LxWxH)400 x 250 x 82 mm
Weight1.9 kg
PowerDC 12V, 29W
Operating Temp. Range0~40 °C
OptionsCB-46/47/60/61/62
