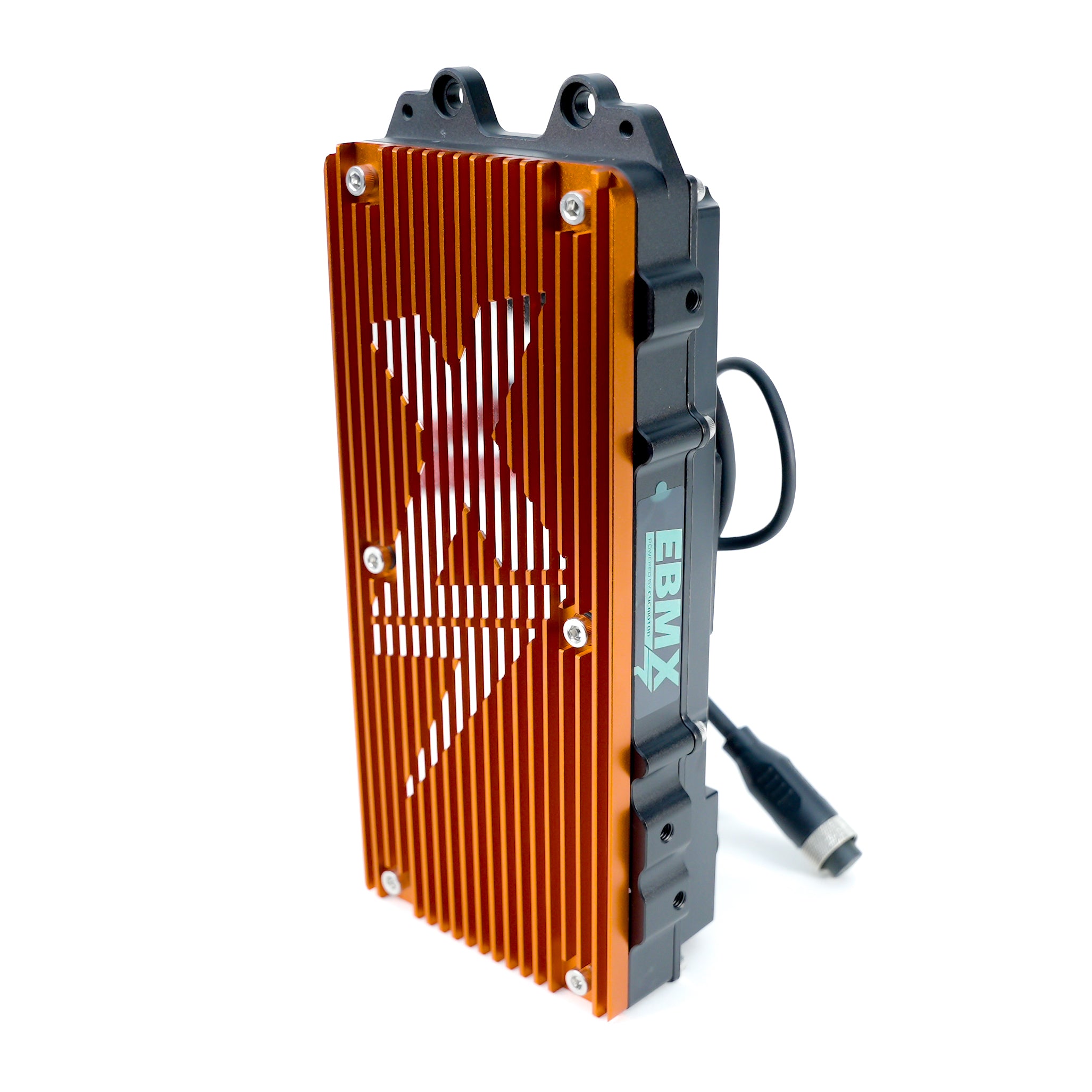

EBMX X-9000 Controller Upgrade: Sur-Ron, Talaria, E Ride Pro, Rawrr
Product details
Upgrade your Sur-Ron or Talaria with the EBMX X-9000 Controller kit to increase your power capabilities. Rated at 40kW of continuous power, the X-9000 plug-and-play controller is compatible with various electric motorbikes and motors.
X-9000 Heatsink Color Options:
- Black
- Blue, Red, Gold, Purple (ships within 20 days)
EBMX X-9000 Controller Compatibility
The EBMX X-9000 controller kits include all the necessary parts for OEM replacement for each of the following electric motorbikes, based on your selection before adding to cart.
| X-9000 Controller Adapter Kits |
|---|
|
X-9000 is currently compatible with the following OEM motors. Each motor is fully tested and available on the EBMX app.
| Compatible Motors | |
|---|---|
|
|
EBMX X-9000 Controller Features
- Custom EBMX App for tuning and full control (iOS and Android)
- multiple power modes with individual adjustability
- adjustable speed limits
- customizable dashboard display
- iOS Download on the App Store
- Android Download on Google Play
- EBMX X-9000 App Guide
- Built-in, Programmable DC/DC Converter with 4 outputs (12v)
- coolant pump, headlights and other 12v accessories controllable via app
- Air-Cooled Heatsink available in 5 colors: Black / Blue / Red / Gold / Purple
- Fully-Sealed Wiring Harness with waterproof IP67-rated connectors
- Direct Bolt-In for SurRon Light Bee and Talaria Sting MX3/MX4
- harness adapter included – no extra brackets needed, no phase wire extensions, or other additional parts
- SW102 Display (EggRider) included with custom firmware
- monitor motor and controller temp in addition to the standard display info
- Heavy-Duty Construction for hard riding and high-power batteries/motors
EBMX X-9000 Controller Specs
| Rated Power | 40kw (continuous) |
| Input Voltage Range | 40v – 100v |
| Working Voltage Range | 48v – 93v (22S) |
| Phase | 1000A (continuous) 1500A (burst) |
| Max Efficiency | >95% |
| Max Battery Current | 500A |
| Motor Control Protocol | Field Oriented Control |
| Internals | 30 highly-efficient MOSFETS Durable CNC-machined terminal and connections 12V DC-DC converter with 4 configurable outputs CANBUS Ready |
| Firmware | VESC-based motor control and firmware modified by EBMX |
| Operating Temp Range | -25° to 80° Celsius |
| Inclusions | X-9000 Controller Air-Cooled Heatsink SW102 Display Regen Thumb Throttle 2-1 Harness |
| Waterproofing | IP67 |
| Warranty | 2 Years |
